RTFJ350 Adhesive Label Slitting Rewinding Machine

  • Size:
  • 1.75(L)*2.8(W)*2.4(H)m
  • Customizable:
  • Support width and configuration customizable
  • Delivery time:
  • 45 working days
Contact Us Watch The Video
Product Description

RTFJ350 Adhesive Label Slitting Rewinding Machine: max speed is 220m/min, adopt 6pcs of servo motor to control , with slitting , auto paper core loading, auto cutting ,auto labeling, auto rewinding functions,  paper core without glue, no folding, with meter counter ,quantity counter.



1. The motor group equipped with three motor linkage control has the advantages of fast speed and stable tension, which can ensure the production of beautiful products.
2. Tension detection devices are installed at both the unwinding and rewinding places, and PLC automatic constant tension control system is adopted to accurately control the tension.
3. The main drive adopts the rubber roller pressing method to effectively prevent the material from being out of sync with the roller, and at the same time isolate the tension between unwinding and rewinding, so that the tension of the whole machine is extremely stable.
4. The rewinding system can be installed with an air shaft or a differential shaft to meet different needs.
5. The rewinding unit can be installed with an infrared marker to achieve fast and accurate positioning of the paper tube.
6. A clamping device is set in front of the rewinding unit to fix the slit material to ensure that the tension after slitting is consistent with the rewinding position.
7. The machine idler is made of aluminum alloy profiles, which is hard anodized before slitting and anti-sticking after slitting.
8. The upward-feeding roll paper path is adopted to facilitate the operator to connect the material and install the knife.
9. A finished product fast unloading device is provided to greatly reduce the labor.
10. Large centrifugal fans are used to process edge materials efficiently.

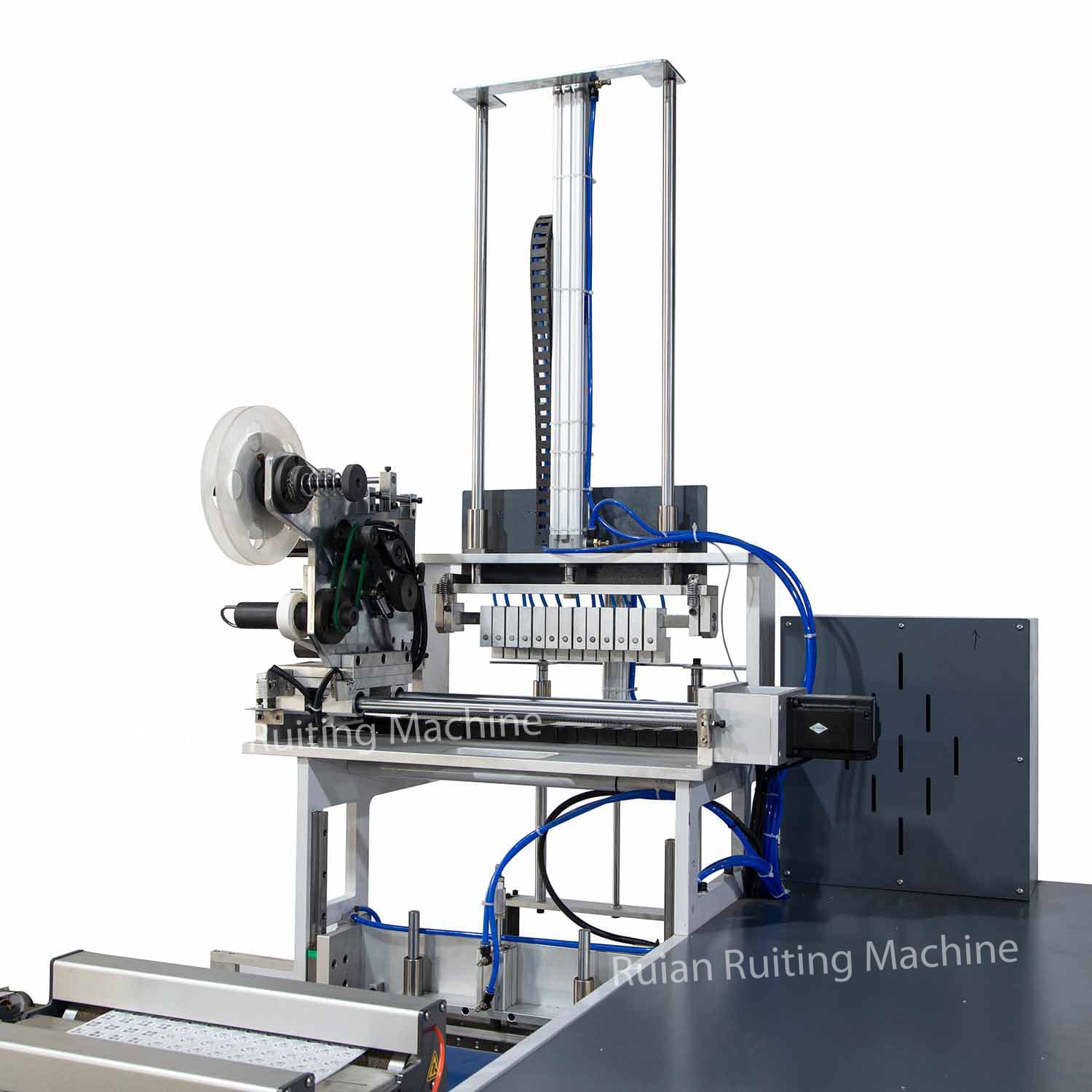

Product Details
Main Technical Parameter





Descriptions

Parameters

Max web width

350mm

Max.speed

220m/min

Max rewinding diameter

140mm

Max. unwinding diameter

600mm

Cutting precision

±0.1mm

Voltage

220V, single phase

Overall Dimension

1750*2800*2400mm

Weight of Machine

1200kg

Total power

6kw
