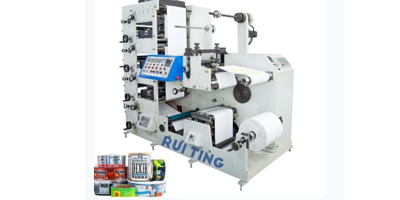

How to Diagnosis and Fix Stack Flexo Printing Machine Defects: An In-Depth Guide

Stack Flexo Printing Machines are widely used in the printing industry due to their high productivity and ability to handle multiple colors and substrates. However, like any complex machinery, they are prone to various defects that can affect print quality and production efficiency. This in-depth guide will provide a comprehensive overview of how to diagnose and fix common defects in Stack Flexo Printing Machines.

1. Ink-related Defects
Ink Smearing:
Diagnosis: Check the drying system first. Insufficient drying can lead to ink smearing. Examine the temperature and airflow settings of the drying unit. Also, look at the ink viscosity. If it is too low, the ink may not dry properly. Additionally, inspect the anilox roller for wear or damage, as it may not be metering the ink correctly.
Fix: Adjust the drying system parameters to increase the temperature or airflow if needed. Check the ink viscosity and adjust it according to the manufacturer's recommendations. If the anilox roller is worn, replace it or have it refurbished.
Color Inconsistency:
Diagnosis: Examine the ink supply system. There could be a blockage or uneven distribution of ink in the ink lines. Check the condition of the ink pumps and valves. Also, verify the accuracy of the anilox roller's cell volume. Different cell volumes can result in varying amounts of ink transfer. Inspect the printing plates for any damage or wear that could affect color reproduction.
Fix: Clean the ink supply system, including the lines, pumps, and valves. Ensure the anilox roller has the correct cell volume and is clean. Replace damaged or worn printing plates. Use color measurement tools to calibrate the colors accurately.

2. Registration Defects
Misalignment between Colors:
Diagnosis: Check the registration system of the machine. This includes the gears, shafts, and sensors. Inspect for any loose or damaged components. Examine the web tension. Uneven web tension can cause the substrate to shift and result in color misalignment. Also, look at the accuracy of the plate mounting. If the plates are not mounted correctly, it can lead to registration issues.
Fix: Tighten or replace any loose or damaged components in the registration system. Adjust the web tension to the appropriate level. Ensure accurate plate mounting using proper alignment tools and procedures. Use the machine's registration adjustment controls to fine-tune the alignment between colors.
Image Shift:
Diagnosis: Inspect the substrate feeding system. There could be a problem with the rollers or guides that are responsible for transporting the substrate. Check for any obstructions or debris that may be causing the substrate to deviate from its intended path. Also, examine the drive motors and their synchronization. If the motors are not synchronized properly, it can result in an image shift.
Fix: Clean and maintain the substrate feeding system, removing any obstructions or debris. Check the drive motors and their synchronization settings. If necessary, recalibrate the motors to ensure proper synchronization. Use the machine's image shift correction features if available.

3. Print Quality Defects
Blurred or Fuzzy Prints:
Diagnosis: Examine the printing plate. If it is worn or damaged, it can cause blurry prints. Check the pressure settings between the plate and the substrate. Incorrect pressure can result in poor ink transfer and blurred images. Also, look at the condition of the impression cylinder. Any scratches or dents on it can affect print quality.
Fix: Replace worn or damaged printing plates. Adjust the pressure between the plate and the substrate according to the recommended settings. Inspect and repair or replace the impression cylinder if it is damaged.
Dot Gain or Loss:
Diagnosis
Fix: Ensure the anilox roller has the correct cell characteristics. Select the appropriate ink for the substrate. Adjust the printing speed to an optimal level. Use dot gain compensation curves in the prepress process to correct for any dot gain or loss issues.

4. Mechanical Defects
Noisy Operation:
Diagnosis: Listen carefully to the source of the noise. Check the bearings in the rollers, shafts, and gears. Worn or damaged bearings can produce noise. Inspect the drive belts for proper tension and any signs of wear or cracking. Also, look at the motor mounts and couplings. Loose or damaged mounts and couplings can cause vibrations and noise.
Fix: Replace worn or damaged bearings. Adjust the drive belt tension or replace the belts if needed. Tighten or repair the motor mounts and couplings. Lubricate the moving parts as per the manufacturer's instructions.
Machine Jams:
Diagnosis: Examine the substrate path. Look for any obstructions such as paper scraps, dust, or foreign objects. Check the tension control system. Incorrect tension can cause the substrate to wrinkle or jam. Also, inspect the rollers and guides for any damage or misalignment that could prevent the smooth flow of the substrate.
Fix: Remove any obstructions from the substrate path. Adjust the tension control system to the correct settings. Repair or replace any damaged rollers or guides. Ensure proper alignment of all components in the substrate path.

In conclusion, diagnosing and fixing defects in Stack Flexo Printing Machines requires a systematic approach. By understanding the common causes of various defects and following the appropriate diagnostic and repair procedures, operators can maintain high print quality and production efficiency. Regular maintenance and preventive measures are also essential to minimize the occurrence of defects and prolong the life of the machine.
